Low Budget Rifle Stock Build by bobfortiers of CGN

Low Budget Rifle Stock Build by bobfortiers of CGN

This is a photo essay of a stock build for a Savage Axis using commonly available materials and tools.  Now Bob is pretty darn good at wood working as it shows in his skill in the build BUT none of this is beyond many shooters/hobbyist.    Some great tips and pics.    Enjoy…

Orig post on CGN

jeep004005

I wanted a dedicated gun to shoot at targets, either from a bench at 100m or shooting long range in F-class type of shooting. I did not have a lot of budget for this project, so I decided to build from a Savage Axis gun. I found one used in 223 for 300$. Being a stockmaker it was a no-brainer to me that I wanted a new stock for it, because Axis stocks are a bit on the soft side. Also, I wanted to see if the Axis action could be used for a built. I think that there will be more and more of those around, so we might as well play with them a bit.
EdgeAxis002001

EdgeAxis002003

Since the Axis trigger guard is made of plastic and integral to the stock, I made my own using aluminium from the home center and a jig in plywood.

EdgeAxis003006

The recoil lug is in the stock on a Savage Axis, I checked and it is easily removed. More on that later.

Gaulin002004

The stock was made of russian birch plywood, laminated with exterior glue. I did not want a dedicated bench stock, with flat foreend to ride on bags. I enjoy shooting prone with a bipod, and I wanted a do-it-all kinda stock. I started with a wide blank, and after doing the barrel/action machining I routed a slot for the recoil lug. It fits tight.

Gaulin002005

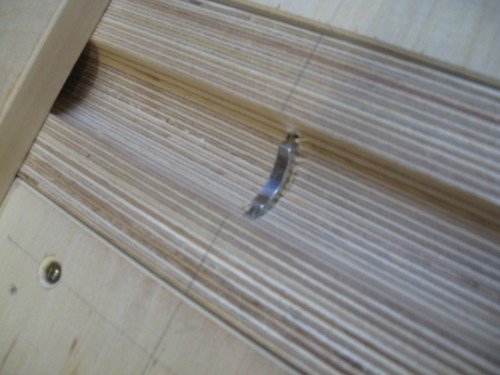

Started the Inletting.

Gaulin004001

Gaulin004002

Gaulin004003

I needed longer action screws. I took 1/4-20 long bolts, cut the existing thread, and I re-threaded them to the proper thread (1/4-28 IIRC)

Gaulin006001

Gaulin006002

Gaulin006003

Next I worked on the trigger guard

Gaulin006004

Gaulin006005

Gaulin006006

Gaulin006008

Gaulin006009

Remember I told you that I wanted to ride front bags and use a bipod ? I installed an insert into the stock so that the front sling swivell will be easily removed so I don’t tear the bags at the range.

Gaulin006010

Then I shaped the exterior. I like the A5 shape, so I started from that.

Gaulin006016

Gaulin006017

Gaulin006013

Rough shape with a bandsaw

Gaulin006020

Then up with the grinder with 50 grit sandpaper for rapid (and messy) wood removal

Gaulin007006

Gaulin007007

Gaulin007008

Gaulin007009

Gaulin007010

Gaulin007011

Looks weird with the small barrel. Good news is that I found a barrel from a Savage model 12 VLP in a 1:7 twist. I’ll install that later in December.

Gaulin007015

Gaulin007018

Yesterday I did a small spacer out of alumium so I can feed it better single shot.

Gaulin014001

Gaulin014002

Gaulin014003

Gaulin014004

I also made myself a buttpad out of recycled tires mat. Remember, budget project ! I got the piece of mat for free, and I did not want to buy a buttpad for this project. Yeah I know, the 3 holes don’t quite align, but hey, it is made from tires !

Gaulin014005

Gaulin014008

Gaulin014007

This stuff is messy to work with, but it does not stick to the skin, it can be brushed away easily

Gaulin014009

Gaulin014010

Gaulin014011

Gaulin014012

Next is the finish. Maybe I’ll hunt coyotes and groundhog with it, and I wanted to try a green finish, so I got a “olive” stain and stained the stock

Gaulin014014

Gaulin014015

Gaulin014016

Gaulin014017

Gaulin014018

Next to a benchrest stock I’m making

Gaulin014019

I sprayed 3 coats of lacquer on it today, and I re-assembled the gun. Needless to say, it looks way better with that stock

Gaulin015001

Gaulin015002

Gaulin015003

Gaulin015004

Gaulin015005

Gaulin015006

Gaulin015007

Gaulin015008

Gaulin015009

Gaulin015010

So far I am at $615 for the project. $300 got me a used Axis, I got a scope on it for $120, the VLP barrel is $175, and $20 got me a set of used deluxe Lee reloading dies. The next thing I’ll add is a 20 MOA scope base. So it is safe to say that when all is done I will have a pretty good gun for less than $700. I’ll let you know how it shoots when the new barrel is installed.
